Banded Wrapped V belt
Our Production Range:
Classical banded V belt series:AJ(HA),BJ(HB),CJ(HC),DJ(HD)
Narrow banded V belt series:banded SPC,9J,15J,25J
Banded Wrapped V belt
Our company,s banded V belt for heavy duty industrial machinery and equipment with high strength ,durability and performance.

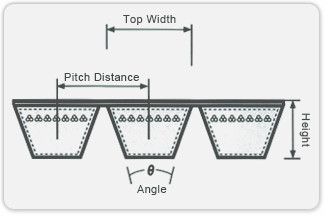

Sections one
| Type | Top Width
mm |
Single Belt Height
mm |
Belt Height
mm |
Pitch Distance
mm |
Length Range
mm |
| AJ | 13 | 8 | 10 | 15.88 | 1400-5000 |
| BJ | 16 | 10 | 13 | 19.05 | 1300-9500 |
| CJ | 22 | 13 | 17 | 25.4 | 1900-8000 |
| DJ | 32 | 19 | 21 | 36.53 | 2000-17000 |
Sections two
| Type
|
Top Width
mm |
Single Belt Height
mm |
Belt Height
mm |
Pitch Distance
mm |
Length Range
mm |
| 9J | 9.7 | 7.9 | 9.7 | 10.3 | 1300-5000 |
| 15J | 15.7 | 13.5 | 15.7 | 17.5 | 1300-9500 |
| 25J | 25.4 | 23 | 25.4 | 28.6 | 1900-17000 |
| Banded SPC | 22 | 18 | 20 | 25.5 | 1900-10000 |
Properties and Advantages
Excellent operational safety
Narrow profile ribs provide saving through efficiency
Joined construction for problem drives
Up to 50℅more horsepower capacity
Temperature range from -40℃ to +80℃
Static conductive to iso1813
Oil, heat, ozone, and abrasion resistant
Reduced noise level
Applications
Crushers , saw, screens
Lathes ,sanders
Dryers ,blow tanks
Chain drives, washers
Structure
Outside fabric: Polyester cotton canvas
Tensile member: Polyester cord,Kelvar cord
Top rubber: NR, CR
Buffer Rubber: NR, CR
Bottom Rubber: NR, CR
